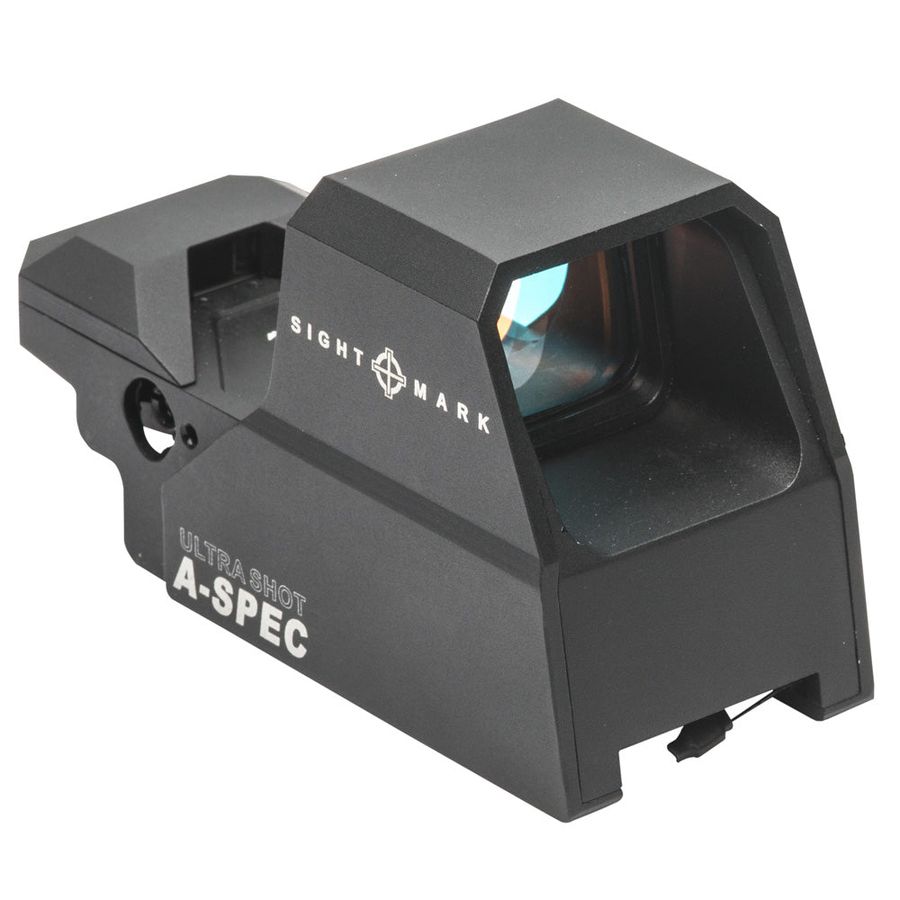

Sightmark Ultra Shot A-Spec Reflex Sight
Designed to deliver advanced optic performance, the Sightmark Ultra Shot A-Spec Reflex Sight promises repeatable accuracy and ultra-fast target acquisition for recreational, professional and competition shooting environments. The Ultra Shot A-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, 4 illuminated red reticle options with 10 brightness settings, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even when perfect sight alignment isn’t an option. Built tough, the Ultra Shot A-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminium body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.
US Pat. D872219 US Pat. D872219S1
Features
- XT-3 Magnifier compatible
- Advanced AR coated
- Scratch resistant lens system
- Night vision brightness modes
- 4 red reticle options with 10 brightness settings
- Quick detach mount for easy on/off application
- Auto-off capabilities
- Low battery indicator
- Recoil rated up to .50 BMG
- Up to 2000 hours of battery life
- Parallax corrected optical system
Included in Package
- CR123A battery
- Manual
- Adjustment tools
- Neoprene cover
Batteries Used
- Type: CR123A
- Quantity: 1
| Reticle, Type | 4 Pattern – 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA) |
|---|---|
| Reticle, Colour | Red |
| Reticle Brightness Setting | Off, 1-10, NV |
| Magnification | 1 |
| Objective overall dimension (mm) | 33×24 mm |
| Eye relief (in/mm) | Unlimited |
| Elevation Range of Adjustment | 120 MOA |
| Windage Range of Adjustment | 120 MOA |
| Adjustment Value | 1 MOA |
| Parallax Setting | 10 / 9.1 yd/m |
| Finish/Colour | Matte black |
| Body Material | Aluminium 6061-T6 |
| Maximum Recoil | .50 BMG Max calibre |
| IP Rating (waterproof) | IP55 – water resistant |
| Nitrogen Filled | No |
| Fog Proof | No |
| Shock-proof | Yes, 8ft / 2.4m |
| Lens Coating | AR red |
| Mount Type | Picatinny |
| Battery Type | CR123A |
| Battery Life | 200-2,000 Hours |
| Battery Voltage, V | 3 V |
| Operating temperature, F/C | -22 to 160 / -30 to 71 F/C |
| Length (in/mm) | 4.33 / 110 in/mm |
| Width (in/mm) | 1.96 / 50 in/mm |
| Height (in/mm) | 2.28 / 58 in/mm |
| Weight, oz | 10.8 oz. |
