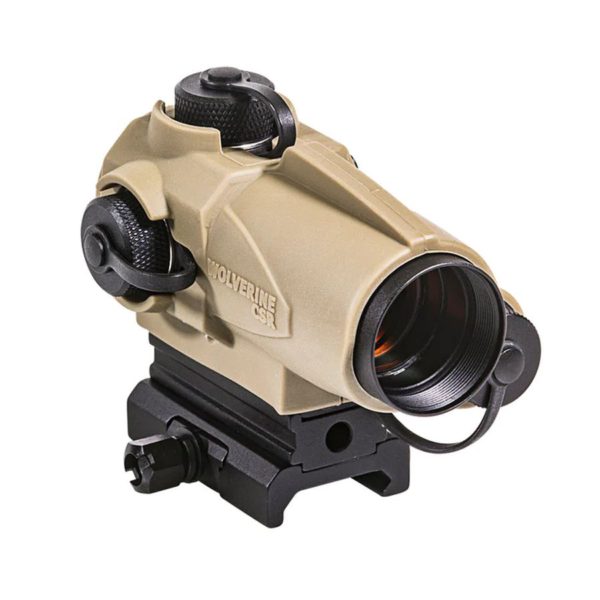

Sightmark Wolverine CSR Red Dot Sight – Flat Dark Earth
Designed specifically for shotguns and short barrelled rifles, the Sightmark Wolverine CSR FDE features a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Ready to handle the tough stuff and look good doing it, the Wolverine is housed in a rubber armoured single-piece 6061-T6 aluminium body and sports a striking flat dark earth finish.
The Wolverine CSR’s compact design weighs only 10.3 ounces and offers extremely long battery life on a single AA battery. The versatile CSR offers night vision modes, enabling it to co-witness with night vision sights. The Wolverine CSR FDE is fog proof and nitrogen purged, permitting use in harsh conditions and temperatures ranging from -22° to 122° F. All Wolverine CSR’s are IP67 waterproof and are submersible to 3 ft. Ready to adapt to any environment, the Wolverine boasts an adjustable mount height for maximum viewing comfort.
US Pat. D787627S1 US Pat. D776737S1
Features
- Flat dark earth rubber armour
- Powered by a single AA battery
- Digital switch brightness controls
- Scratch resistant, anti-reflective lens coating
- 28mm objective lens for quicker acquisition
- Protected adjustment caps
- Adjustable mount height
- Fogproof, nitrogen purged
- Night vision compatible
- Unlimited eye relief
- IP67 waterproof rating-submersible to 1m/3ft
- 6 years of continuous use
Included in Package
- Rubber lens cover
- Picatinny mount
- Riser for absolute co witness
Batteries Used
- Type: AA
- Quantity: 1
| Reticle, Type | 4 MOA Dot |
|---|---|
| Reticle, Colour | Red |
| Reticle, Illuminated | yes |
| Setting, Brightness | off, NV1, NV2, 3-10 |
| Magnification | 1 x |
| Dimension, Window | 23 mm |
| Material, Window | glass |
| Eye Relief | unlimited mm |
| Windage Range of Adjustment | 120 MOA |
| Elevation Range of Adjustment | 120 MOA |
| MOA Adjustment | 1 MOA |
| Finish/Colour | Flat Dark Earth |
| Body Material | Aluminium 6061-T6 / rubber |
| Maximum Recoil | .338 Win |
| IP Standard | IP67 (submersible to 1m / 3ft) |
| Shockproof | yes |
| Fog Proof | yes |
| Lens Coating | AR red |
| Mount Type | Picatinny |
| Battery Type | AA |
| Battery Life | (high) 900 – (low) 1,000,000 / 50,000 (setting 6) hours |
| Battery Voltage | 1.5 V |
| Operating Temp F/C | -22 to 122 F/C |
| Length | 3.4 / 87.5 in/mm |
| Width | 2.8 / 71.6 in/mm |
| Height | 2.4 / 61.1 in/mm |
| Weight | 10.3 oz |
