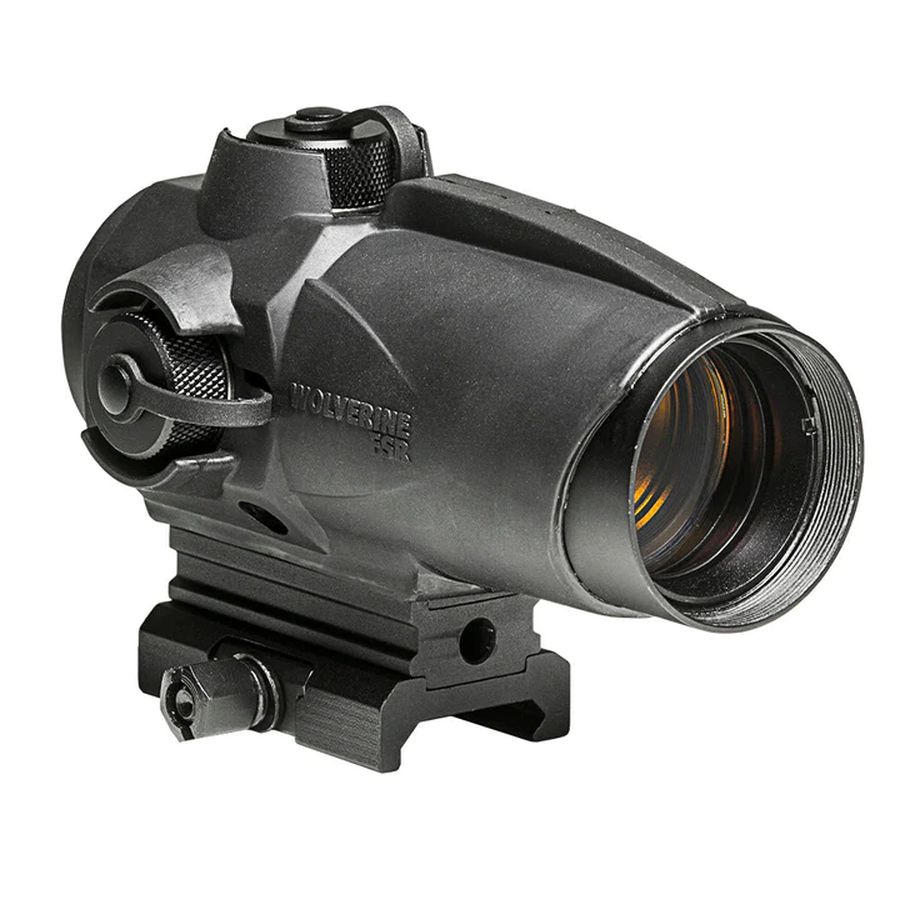

Sightmark Wolverine FSR Red Dot Sight
Designed for short-range engagements and quick target acquisition, the responsive Wolverine FSR 1×28 is a durable red dot optic with a 2MOA dot reticle. The Wolverine’s extremely low power consumption delivers an incredible 1,000,000 hours battery life on low and 6 years continuous use on setting 6 from just a single AA battery. Rubber armoured and constructed of a single piece of 6061-T6 aluminium, the Wolverine is waterproof, fog proof and shockproof. Glass is protected by a scratch resistant, anti-reflective lens coating. All Wolverines have night vision modes, making them compatible with night vision devices. The FSR has ergonomic digital switch controls, making it quick and easy to operate when seconds count. Wolverine FSRs include: a rubber lens cover, picatinny mount and riser for absolute co witness.
US Pat. D795989S1 US Pat. D776737S1
Features
- Digital switch brightness controls
- Scratch resistant, anti-reflective lens coating
- 28mm objective lens for quicker acquisition
- Protected adjustment caps
- Rubber armoured, single piece 6061-T6 aluminium housing
- Adjustable mount height
- IP67 waterproof rating – submersible to 1m/3ft
- Fog-proof, nitrogen purged
- Night vision compatible
- Unlimited eye relief
- Shockproof design
- Wide range of operating temperature, -22 to 122 deg F
- 6 years of continuous battery life
Included in Package
- Rubber lens cover
- Picatinny mount
- Riser for absolute co-witness
- Manual
Batteries Used
- Type: AA
- Quantity: 1
| Reticle, Type | 2 MOA Dot |
|---|---|
| Reticle, Colour | Red |
| Reticle, Illuminated | yes |
| Setting, Brightness | off, NV1, NV2, 3-10 |
| Magnification | 1 x |
| Dimension, Window | 28 mm |
| Material, Window | glass |
| Eye Relief | unlimited mm |
| Windage Range of Adjustment | 120 MOA |
| Elevation Range of Adjustment | 120 MOA |
| MOA Adjustment | 1/2 MOA |
| Finish/Colour | Matte Black |
| Body Material | Aluminium 6061-T6 / rubber |
| Maximum Recoil | .338 Win |
| IP Standard | IP67 (submersible to 1m / 3ft) |
| Shockproof | yes |
| Fog Proof | yes |
| Lens Coating | AR red |
| Mount Type | Picatinny |
| Battery Type | AA |
| Battery Life | (high) 900 – (low) 1,000,000 / 50,000 (setting 6) hours |
| Battery Voltage | 1.5 V |
| Operating Temp,?F/?C | -22 to 122 / -30 to 50 F/C |
| Length | 4.4/113.5 in/mm |
| Width | 2.9/75.1 in/mm |
| Height | 2.6/65.3 in/mm |
| Weight | 12.3 oz |
